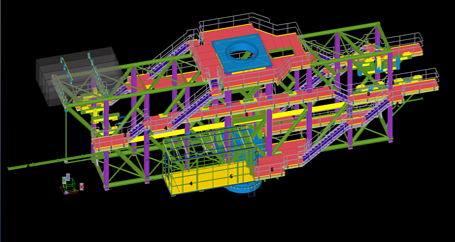

3D Modeling (Tekla Structures)

Fully constructible 3D Tekla models for accurate quantity take-offs and coordination.

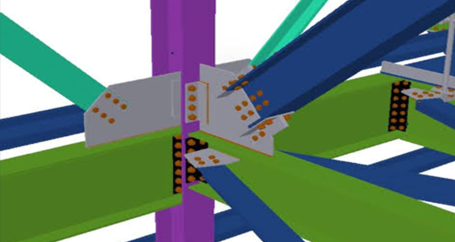

Connection Design Support

Basic connection sketches and GA plans to assist your connection engineer.

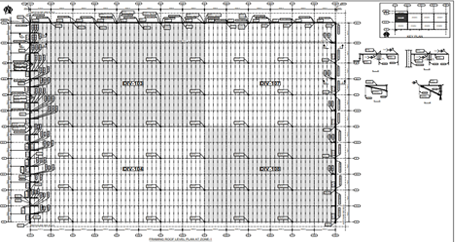

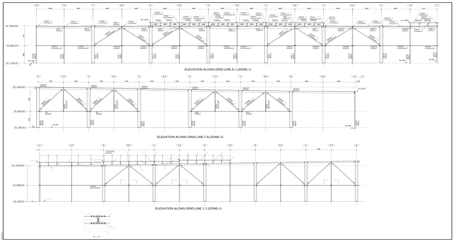

Shop & Erection Drawings

Comprehensive shop drawings and GA drawings for on-site implementation

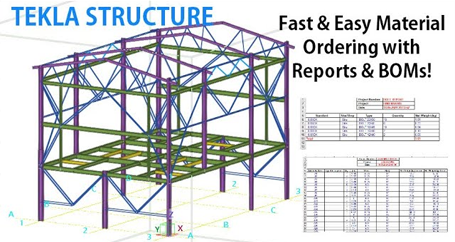

ABM, BOM & Reports

Advanced Bill of Materials (ABM) ,Bill of Materials (BOQ), cutting lists, bolt summaries, etc. tailored to client preferences.

As-Built Drawings & Revisions

Timely and accurate updates post-construction or during revision stages.

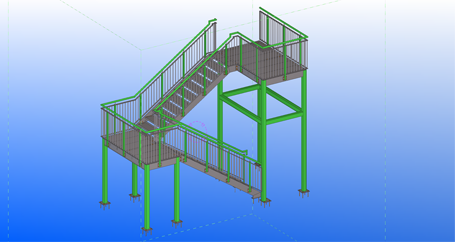

Miscellaneous Steel Detailing:

Our comprehensive Structural Solutions for miscellaneous steel components includes providing Miscellaneous Steel Detailing solutions for toe plates, girt systems and gage plates, stairs and handrails, grating details, studs, treads, ladders, nosing, cages, etc.
